FreeCAD STL -> STEP Part pipeline¶
So I spent the longest trying to figure out how to split a part, and the key is to create a plane from Primitive Graphic in the part workbench and place it so it intersects where you want the cut. Then you select both and do Split -> Slice Apart.
I’m trying to figure out how I can extrude from one of these surfaces right now. I want to extend the split part back to join the original, at which point I will do a boolean union to get back the camera mount inverted T with a longer base. I’m not happy with how close the camera mount rests to the arm. It seems like an obstacle.
Figure 1:Camera mount I’ve managed to recreate from STL into STEP in FreeCAD
So I’m like 30% of the way done with that part. The next thing I want to do is figure out how to rotate the part like 30-45 degrees inward. Right now the camera faces straight forward.
I’ve got the end piece here. I can go nuts creating my own stand that connects to the base. The base is what I really don’t feel like redesigning. You know what? I know how I’m going to do this. I’m not going to try to make it beautiful and smoothly interpolated. I’m just going to make a cut, turn it 30 or 45 degrees then fuse it back in with a boolean union.

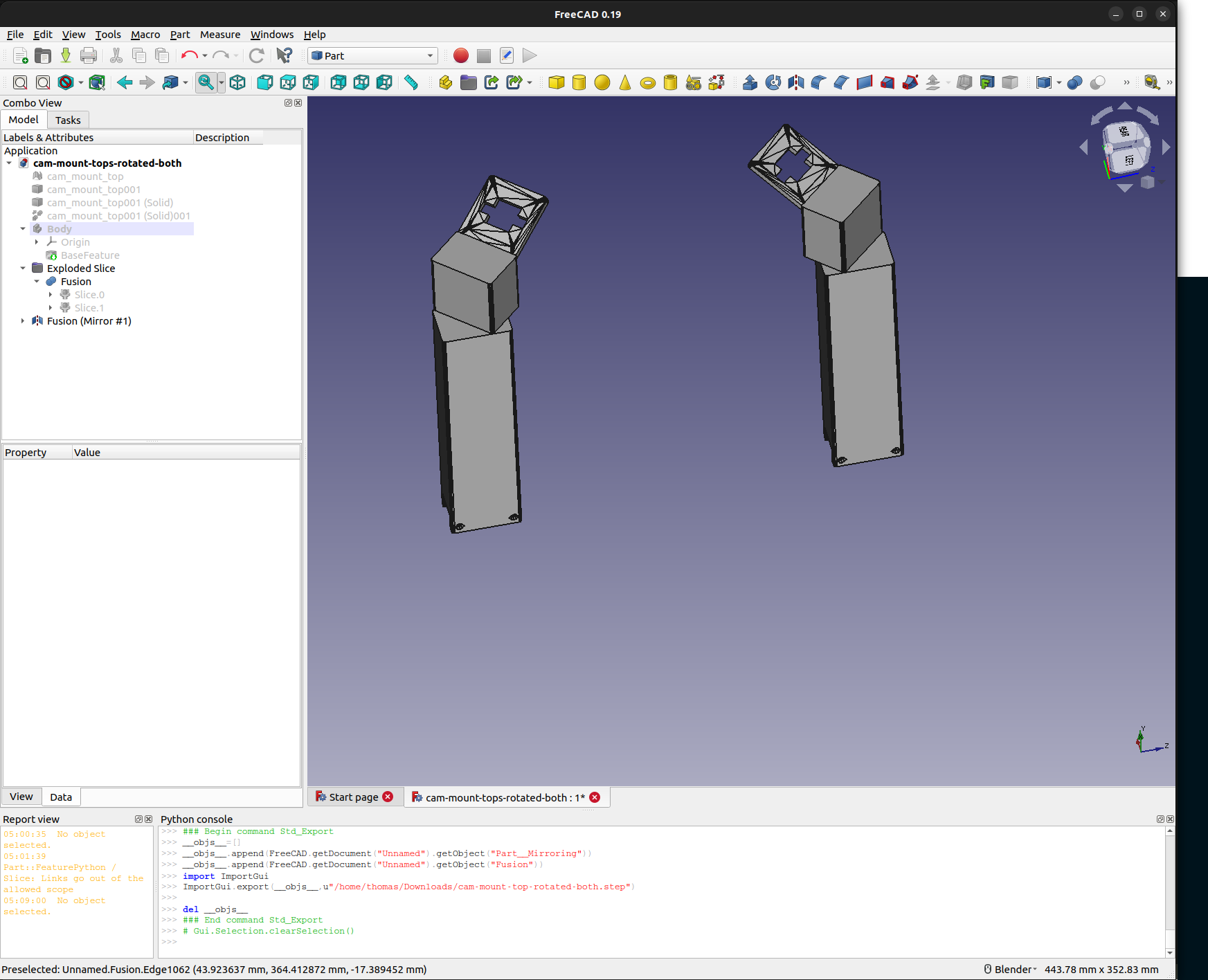

Figure 2:Camera mount rotated 45 degrees to facilitate better overlap in the robot’s workspace

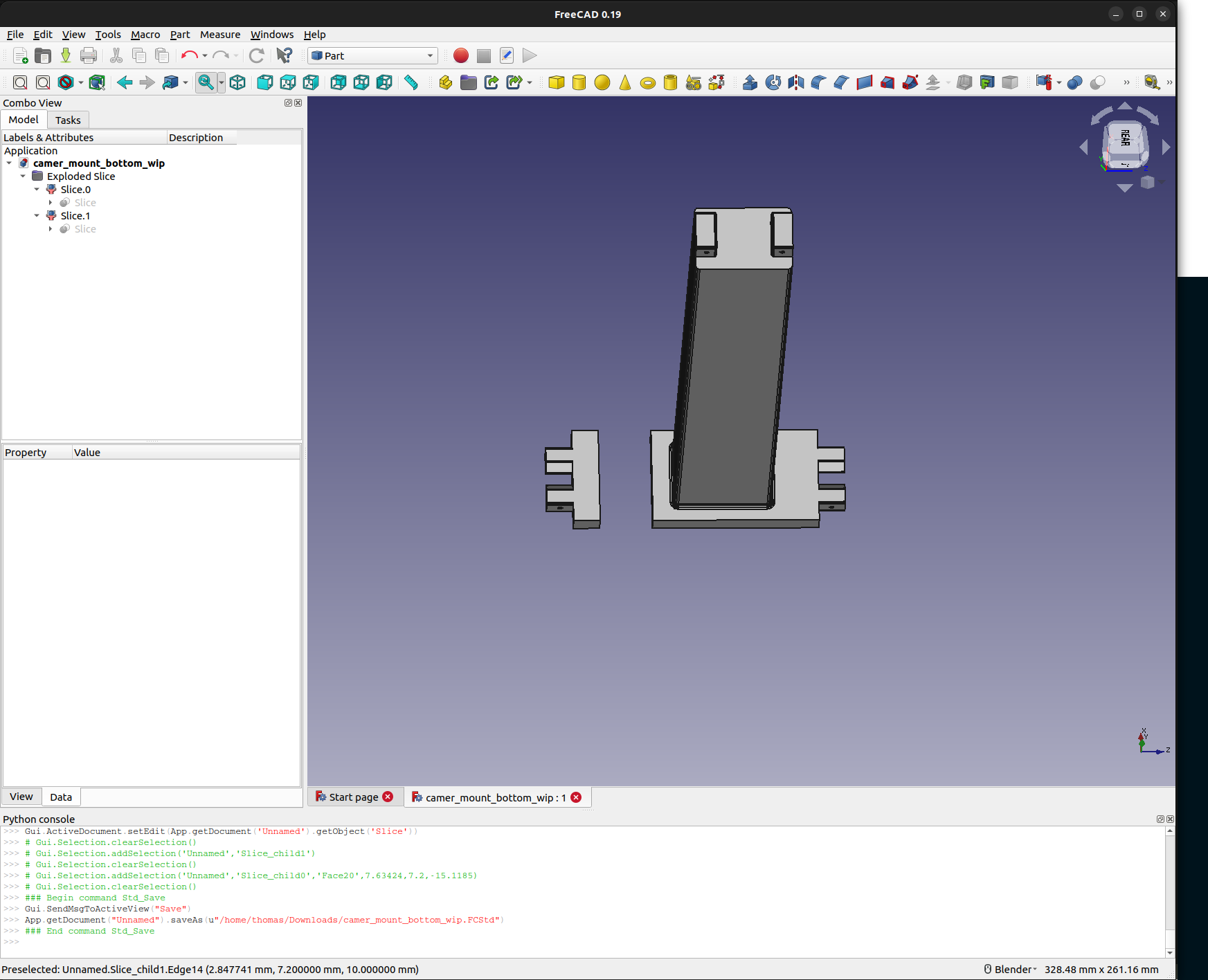

Okay I figured it out. I just inserted a box with the same dimensions. I went a little overboard and inserted another one on the other side even though we only need to extend on side. Then we’ll build another part that rotates the other way and is extended on the other side.
04:11¶

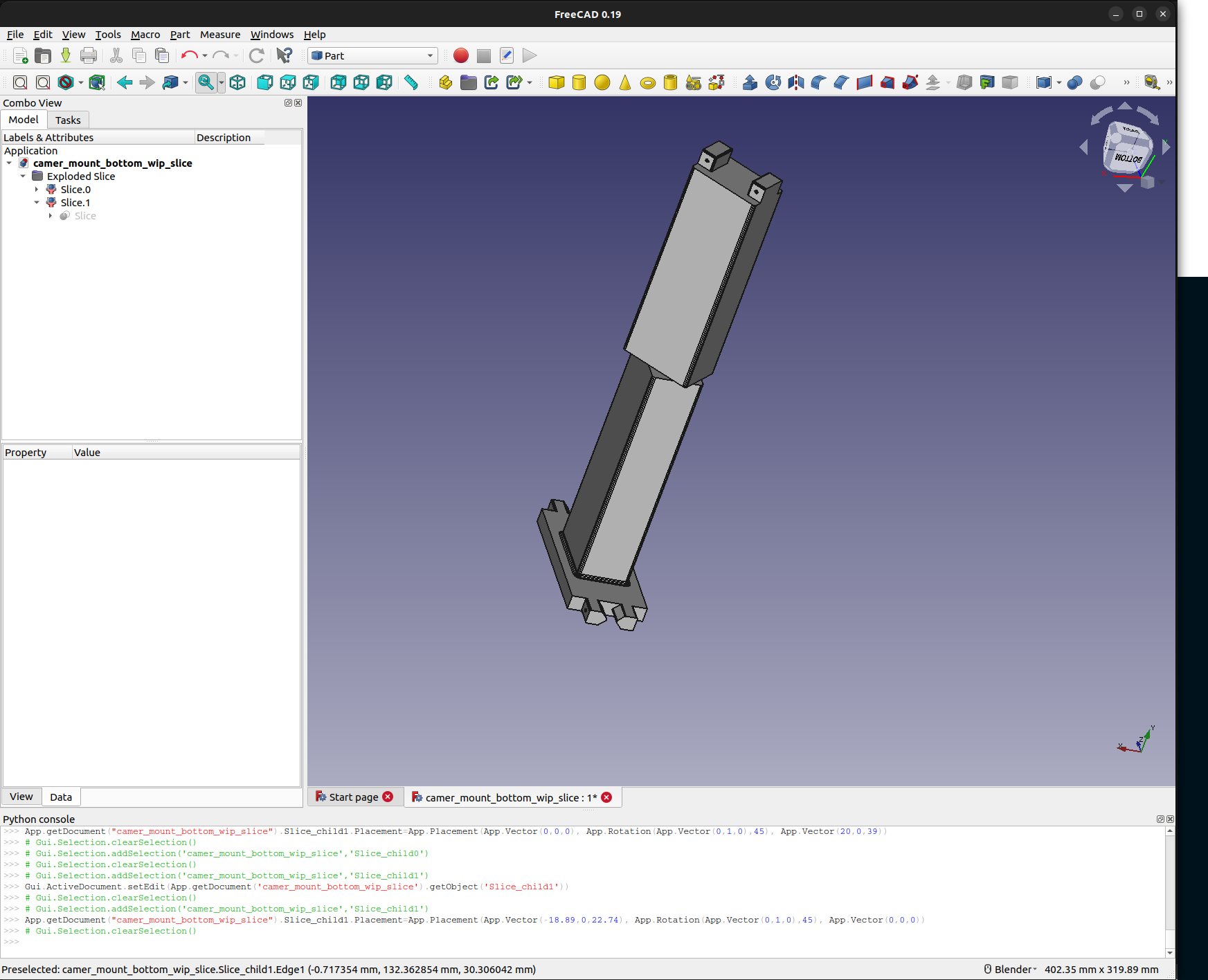

Figure 3:Camera mount is now rotated 45 degrees and extended to avoid collision and give better separation between camera perspectives for training
Design the damn tower rack man!¶
Now I need to bring this same energy to designing a rack to hold towers and their return gutter out of plywood and 2x4s.
Okay but this is cool¶
Alright what did we do yesterday and today? Quick pulse check
05:11¶
Figure 4:Now we’re cooking with induction
Base doesn’t have the twist. We do that at the top now as you can see.
This is the base.

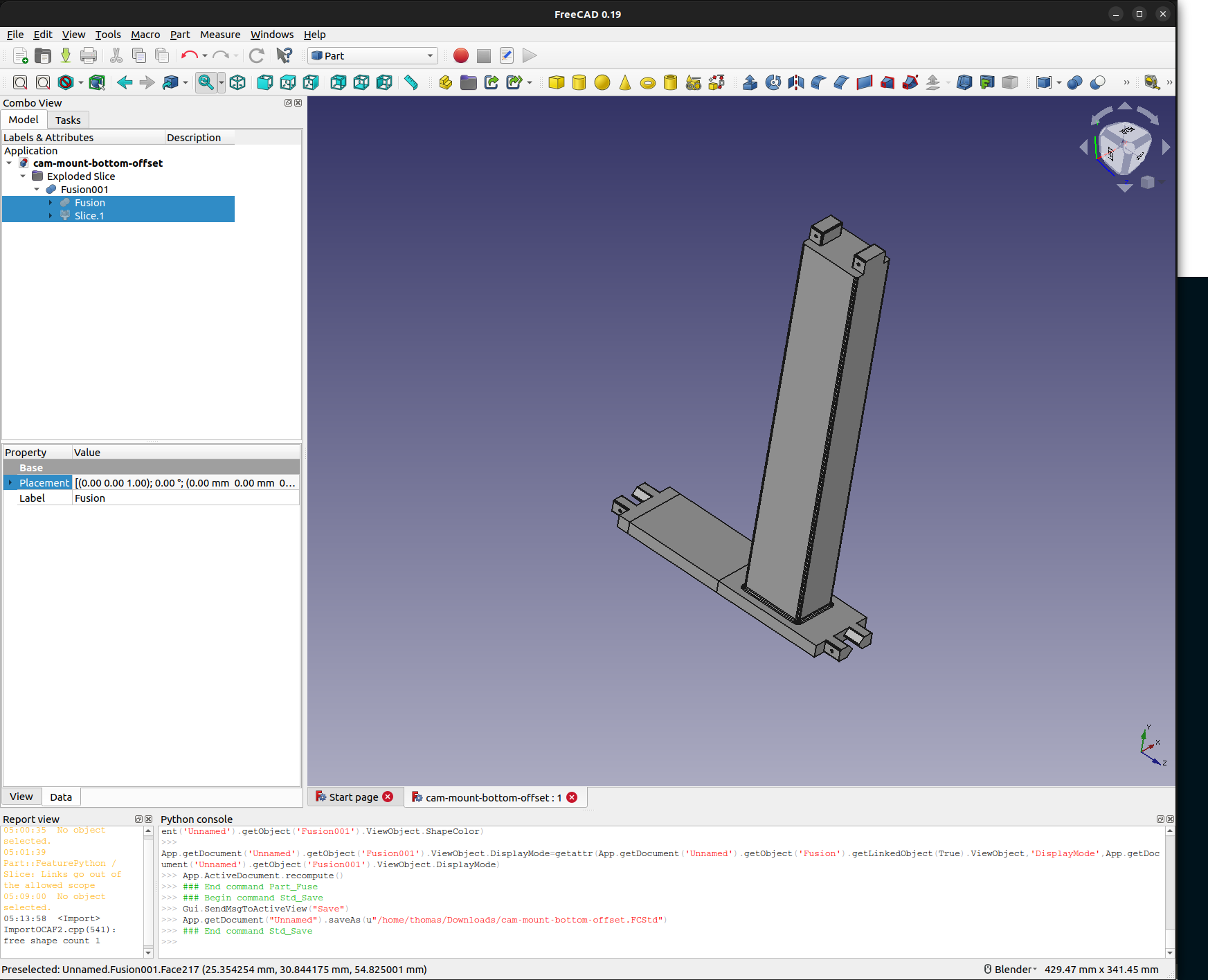

Figure 5:Base has offset to avoid collisions
Here’s the official via TheRobotStudio

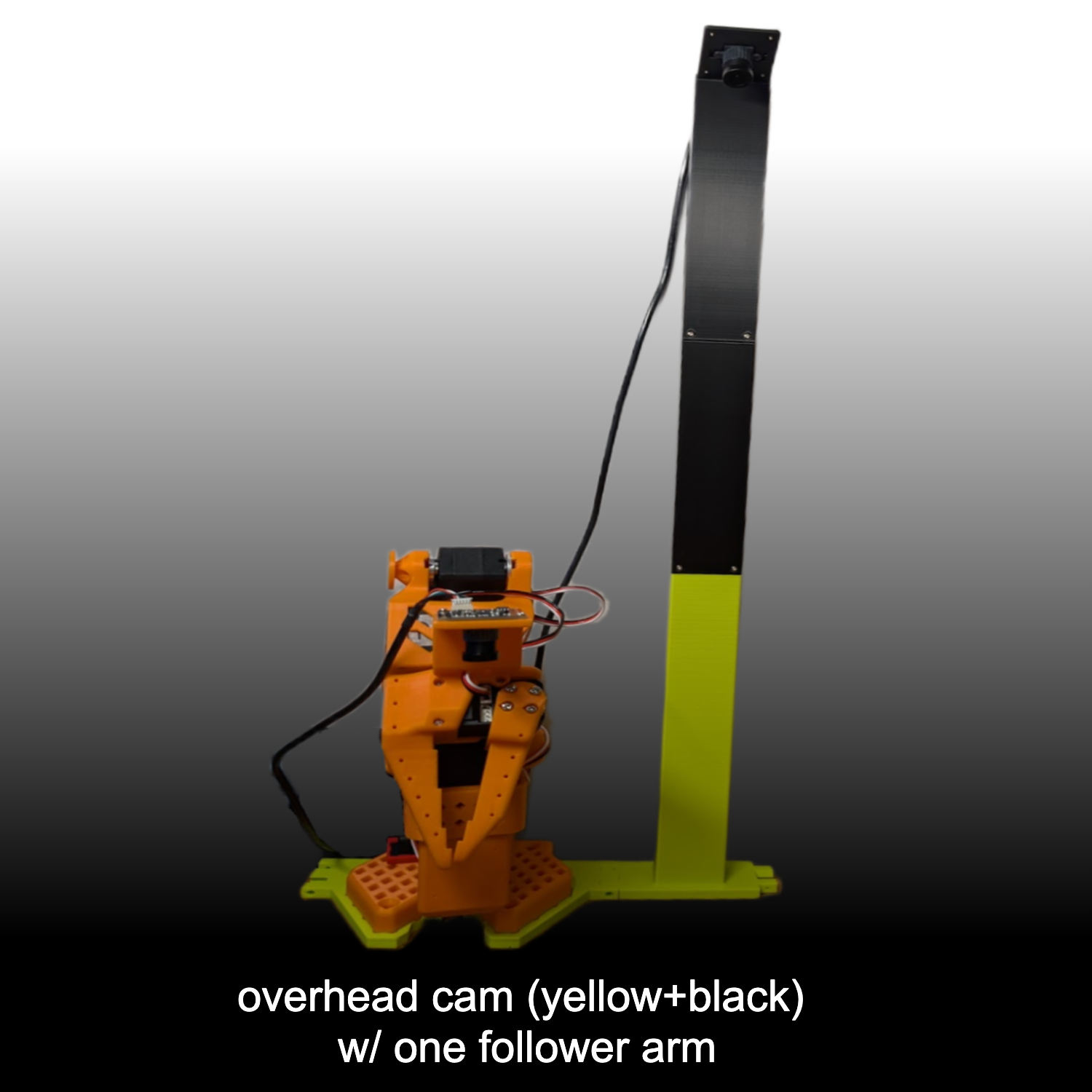

Figure 6:The official looks straight ahead and is all up in follower’s beeswax
We wanted to give the robot a little breathing room and also point the overhead cameras toward the center of the workspace so there is more overlap in their fields of vision.
Figure 7:You’ve already seen the parts so this should be simple to imagine put together
